رسم ساعة باستعمال Java2D

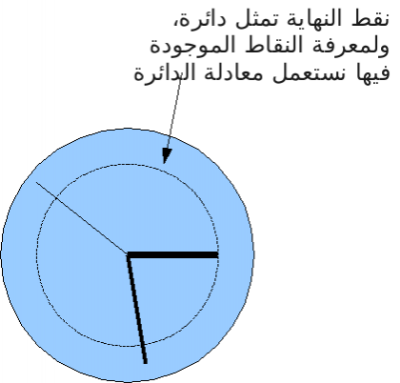

هذا مثال على ما يمكن القيام به باستعمال Java2D، وهو ساعة بسيطة، النتيجة هي على هذا الشكل

هذه هي الفئة الرئيسية التي يتم فيها الرسم

package clock;

import java.awt.BasicStroke;
import java.awt.Color;
import java.awt.Dimension;
import java.awt.GradientPaint;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.RadialGradientPaint;
import java.awt.RenderingHints;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.geom.Line2D;
import java.awt.image.BufferedImage;
import java.util.Calendar;
import javax.swing.JPanel;
import javax.swing.Timer;

public class ClockPanel extends JPanel implements ActionListener {

	private final int WIDTH = 200, HEIGHT = 200, ANGLE_INCREMENT_HOUR = 30,
			ANGLE_INCREMENT_MINUTE = 6, ANGLE_INCREMENT_SECOND = 6,
			RADIUS = 80, X_CENTER = WIDTH/2, Y_CENTER = HEIGHT/2,
			RADIUS_HOUR = 40, RADIUS_MINUTE = 60, RADIUS_SECOND = 60;
	private Timer timer;
	private Line2D hourLine, minuteLine, secondLine;
	private BufferedImage bgImage;

	public ClockPanel() {
		timer = new Timer(1000, this);
		hourLine = new Line2D.Float(X_CENTER, Y_CENTER, 0, 0);
		minuteLine = new Line2D.Float(X_CENTER, Y_CENTER, 0, 0);
		secondLine = new Line2D.Float(X_CENTER, Y_CENTER, 0, 0);
		setPreferredSize(new Dimension(WIDTH, HEIGHT));
		timer.start();
	}

	public void actionPerformed(ActionEvent e) {
		repaint();
	}

	@Override
	protected void paintComponent(Graphics g) {
		Graphics2D g2 = (Graphics2D)g;
		g2.setRenderingHint(RenderingHints.KEY_ANTIALIASING, RenderingHints.VALUE_ANTIALIAS_ON);
		g2.setRenderingHint(RenderingHints.KEY_TEXT_ANTIALIASING, RenderingHints.VALUE_TEXT_ANTIALIAS_ON);
		if (bgImage == null) {
			bgImage = new BufferedImage(WIDTH, HEIGHT, BufferedImage.TYPE_INT_ARGB);
			Graphics2D gImage = bgImage.createGraphics();
			gImage.setRenderingHint(RenderingHints.KEY_ANTIALIASING, RenderingHints.VALUE_ANTIALIAS_ON);
			paintClockBackground(gImage);
			paintClockBorder(gImage);
			paintClockMarks(gImage);
		}
		g.drawImage(bgImage, 0, 0, this);
		paintClockPointers(g);
		paintDigitalClock(g);
	}

	private void paintClockMarks(Graphics g) {
		g.setColor(Color.RED);
		for (int i = 0; i < 60; i++) {
			double angle = Math.toRadians(i * ANGLE_INCREMENT_SECOND);
			int x = (int)(X_CENTER + (RADIUS - 3) * Math.cos(angle));
			int y = (int)(Y_CENTER + (RADIUS - 3) * Math.sin(angle));
			if (i % 5 == 0){
				g.fillOval(x, y, 2, 2);
			} else {
				g.fillOval(x, y, 1, 1);
			}
		}
	}

	private void paintClockPointers(Graphics g) {
		Graphics2D g2 = (Graphics2D)g;
		g2.setColor(Color.RED);
		Calendar now = Calendar.getInstance();
		//paint hour pointer
		int hour = now.get(Calendar.HOUR);
		double angleHour = Math.toRadians(hour * ANGLE_INCREMENT_HOUR);
		int xHour = (int)(X_CENTER + RADIUS_HOUR * Math.cos(angleHour - 1.5708));	//1.5708 radian = 90 degree
		int yHour = (int)(Y_CENTER + RADIUS_HOUR * Math.sin(angleHour - 1.5708));
		hourLine.setLine(X_CENTER, Y_CENTER, xHour, yHour);
		g2.setStroke(new BasicStroke(6f, BasicStroke.JOIN_MITER, BasicStroke.CAP_ROUND));
		g2.draw(hourLine);
		//paint minute pointer
		int minute = now.get(Calendar.MINUTE);
		double angleMinute = Math.toRadians(minute * ANGLE_INCREMENT_MINUTE);
		int xMinute = (int)(X_CENTER + RADIUS_MINUTE * Math.cos(angleMinute - 1.5708));
		int yMinute = (int)(Y_CENTER + RADIUS_MINUTE * Math.sin(angleMinute - 1.5708));
		minuteLine.setLine(X_CENTER, Y_CENTER, xMinute, yMinute);
		g2.setStroke(new BasicStroke(3f, BasicStroke.JOIN_MITER, BasicStroke.CAP_ROUND));
		g2.draw(minuteLine);
		//paint second pointer
		int second = now.get(Calendar.SECOND);
		double angleSecond = Math.toRadians(second * ANGLE_INCREMENT_SECOND);
		int xSecond = (int)(X_CENTER + RADIUS_SECOND * Math.cos(angleSecond - 1.5708));
		int ySecond = (int)(Y_CENTER + RADIUS_SECOND * Math.sin(angleSecond - 1.5708));
		secondLine.setLine(X_CENTER, Y_CENTER, xSecond, ySecond);
		g2.setStroke(new BasicStroke());
		g2.draw(secondLine);
	}

	private void paintClockBackground(Graphics g) {
		Graphics2D g2 = (Graphics2D)g;
		RadialGradientPaint gradient = new RadialGradientPaint(X_CENTER - 30, Y_CENTER - 30, RADIUS,
				new float[]{0.0f, 1.0f}, new Color[]{Color.decode("0x4E65AF"), Color.decode("0x0000")});
		g2.setPaint(gradient);
		g2.setStroke(new BasicStroke(10.0f));
		g2.fillOval(20, 20, RADIUS*2, RADIUS*2);
	}

	private void paintClockBorder(Graphics g) {
		GradientPaint gradient = new GradientPaint(0, 0, Color.decode("0x4E65AF"), WIDTH, HEIGHT, Color.decode("0x1D316A"));
		Graphics2D g2 = (Graphics2D)g;
		g2.setPaint(gradient);
		g2.setStroke(new BasicStroke(5.0f));
		g2.drawOval(18, 18, RADIUS*2 + 2, RADIUS*2 + 2);
	}

	private void paintDigitalClock(Graphics g) {
		Graphics2D g2 = (Graphics2D)g;
		g2.setColor(Color.WHITE);
		Calendar now = Calendar.getInstance();
		int hour = now.get(Calendar.HOUR);
		int minute = now.get(Calendar.MINUTE);
		int second = now.get(Calendar.SECOND);
		String strTime = (hour<10 ? "0"+ hour : hour) + ":" + (minute<10 ? "0"+ minute : minute) + ":" + (second<10 ? "0"+ second : second);
		int widthString = g.getFontMetrics().stringWidth(strTime);
		g.drawString(strTime, X_CENTER - widthString/2, Y_CENTER + RADIUS/2);
	}
}

المشروع في المرفقات

Clock.zip
